A transformation type is a logical operation applied to a column. Colibri classifies SQL logic into four main types:
| Icon | Type | Description |
|---|---|---|
| P | Pass Through | Column is passed directly without modification. |
| R | Rename | Column is renamed but values remain unchanged. |
| T | Transformation | Column values are transformed using SQL expressions or functions. |
| U | Unknown | Transformation type cannot be determined from the SQL logic. |
You can enable transformation types in the settings panel. There are two visualization modes:

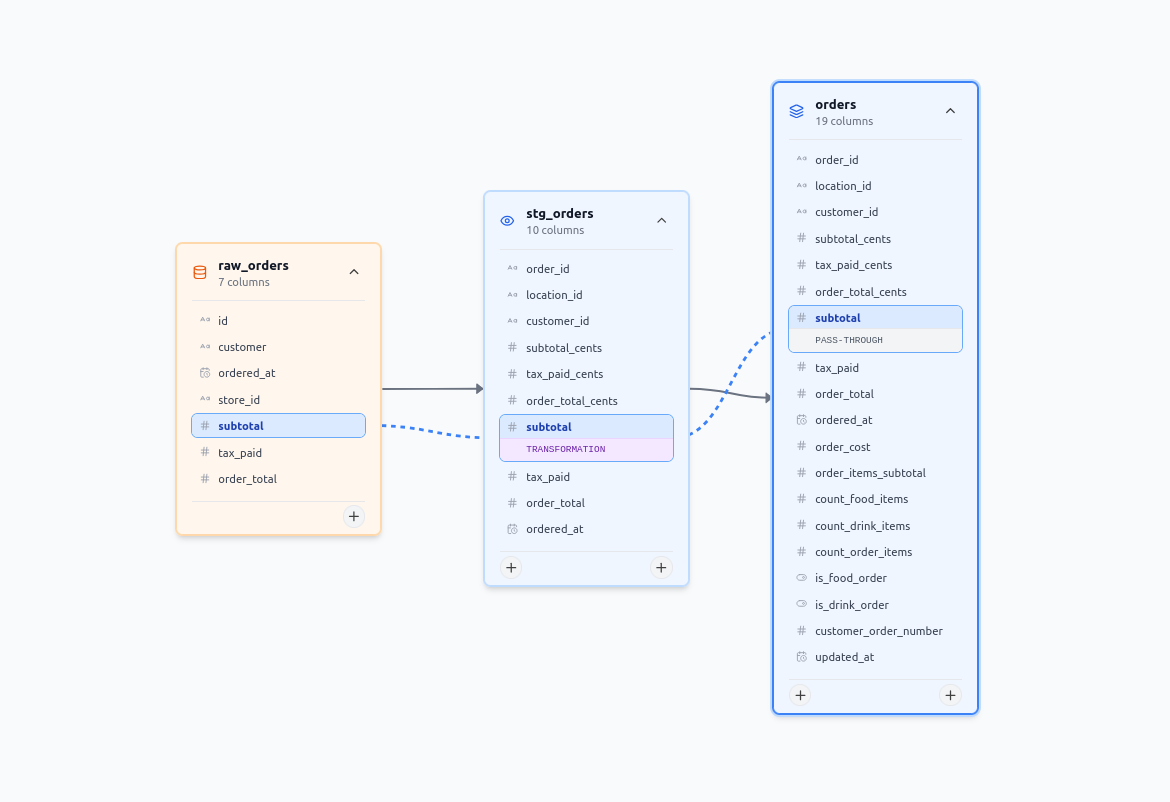

Single Column Mode

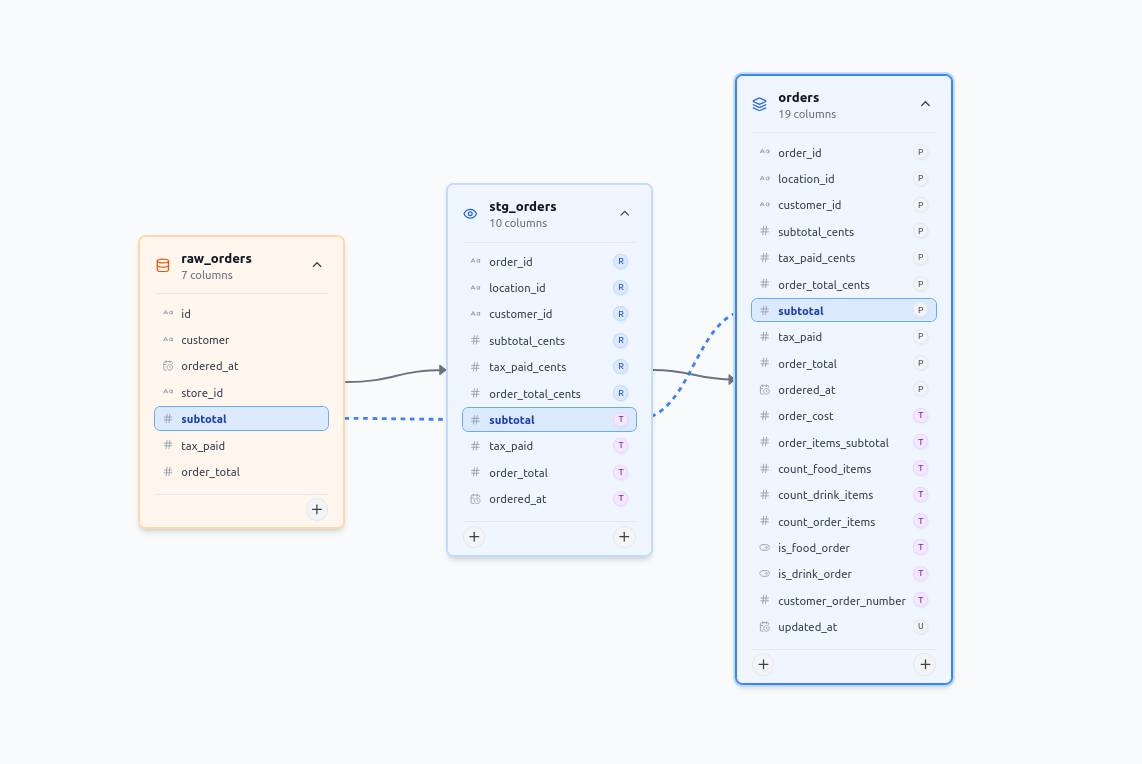

All Columns Mode
